#include <PlayerVideo.h>

Inheritance diagram for PlayerVideo:

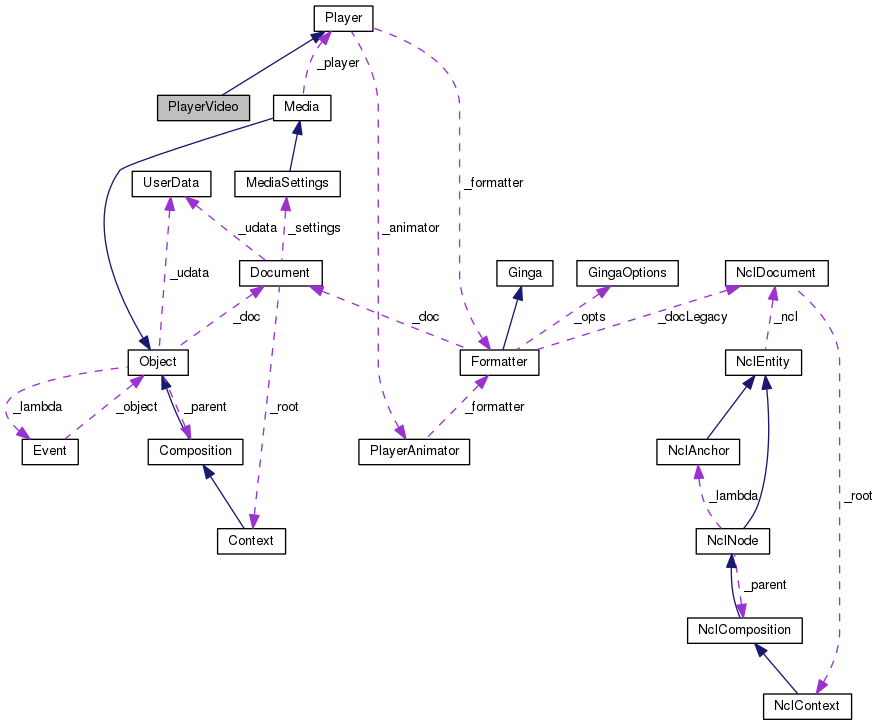

Collaboration diagram for PlayerVideo:

[legend]

Public Types
enum	PlayerState { SLEEPING = 1, OCCURRING, PAUSED }

enum	PlayerProperty { PROP_UNKNOWN = 0, PROP_BACKGROUND, PROP_BALANCE, PROP_BASS, PROP_BOTTOM, PROP_BOUNDS, PROP_DEBUG, PROP_DURATION, PROP_EXPLICIT_DUR, PROP_FOCUS_INDEX, PROP_FONT_BG_COLOR, PROP_FONT_COLOR, PROP_FONT_FAMILY, PROP_FONT_SIZE, PROP_FONT_STYLE, PROP_FONT_VARIANT, PROP_FONT_WEIGHT, PROP_FREEZE, PROP_HEIGHT, PROP_HORZ_ALIGN, PROP_LEFT, PROP_LOCATION, PROP_MUTE, PROP_RIGHT, PROP_SIZE, PROP_TOP, PROP_TRANSPARENCY, PROP_TREBLE, PROP_VERT_ALIGN, PROP_VISIBLE, PROP_VOLUME, PROP_WIDTH, PROP_Z_INDEX }

Public Member Functions
	PlayerVideo (Formatter *, const string &, const string &)

	~PlayerVideo ()

void	start () override

void	stop () override

void	pause () override

void	resume () override

void	redraw (cairo_t *) override

PlayerState	getState ()

bool	isFocused ()

Time	getTime ()

void	incTime (Time)

Time	getDuration ()

void	setDuration (Time)

bool	getEOS ()

void	setEOS (bool)

void	getZ (int , int )

void	setZ (int, int)

virtual string	getProperty (const string &)

virtual void	setProperty (const string &, const string &)

void	resetProperties ()

void	resetProperties (set< string > *)

void	schedulePropertyAnimation (const string &, const string &, const string &, Time)

virtual void	reload ()

virtual void	sendKeyEvent (const string &, bool)

Static Public Member Functions
static string	getCurrentFocus ()

static void	setCurrentFocus (const string &)

static PlayerProperty	getPlayerProperty (const string &, string *)

static Player *	createPlayer (Formatter *, const string &, const string &, const string &)

Protected Member Functions
bool	doSetProperty (PlayerProperty, const string &, const string &) override

Protected Attributes
Formatter *	_formatter

bool	_opengl

string	_id

string	_uri

PlayerState	_state

Time	_time

bool	_eos

cairo_surface_t *	_surface

guint	_gltexture

bool	_dirty

PlayerAnimator *	_animator

map< string, string >	_properties

Private Member Functions
bool	getFreeze ()

Static Private Member Functions
static gboolean	cb_Bus (GstBus , GstMessage , PlayerVideo *)

static GstFlowReturn	cb_NewSample (GstAppSink *, gpointer)

Private Attributes
GstElement *	_playbin

struct {
GstElement * bin

GstElement * volume

GstElement * pan

GstElement * equalizer

GstElement * convert

GstElement * sink

}	_audio

struct {
GstElement * bin

GstElement * caps

GstElement * sink

}	_video

int	_sample_flag

GstAppSinkCallbacks	_callbacks

struct {
bool mute

double balance

double volume

double treble

double bass

bool freeze

}	_prop

Member Enumeration Documentation

enum Player::PlayerProperty

inherited

Enumerator
PROP_UNKNOWN
PROP_BACKGROUND
PROP_BALANCE
PROP_BASS
PROP_BOTTOM
PROP_BOUNDS
PROP_DEBUG
PROP_DURATION
PROP_EXPLICIT_DUR
PROP_FOCUS_INDEX
PROP_FONT_BG_COLOR
PROP_FONT_COLOR
PROP_FONT_FAMILY
PROP_FONT_SIZE
PROP_FONT_STYLE
PROP_FONT_VARIANT
PROP_FONT_WEIGHT
PROP_FREEZE
PROP_HEIGHT
PROP_HORZ_ALIGN
PROP_LEFT
PROP_LOCATION
PROP_MUTE
PROP_RIGHT
PROP_SIZE
PROP_TOP
PROP_TRANSPARENCY
PROP_TREBLE
PROP_VERT_ALIGN
PROP_VISIBLE
PROP_VOLUME
PROP_WIDTH
PROP_Z_INDEX

enum Player::PlayerState

inherited

Enumerator
SLEEPING
OCCURRING
PAUSED

Constructor & Destructor Documentation

PlayerVideo::PlayerVideo	(	Formatter *	formatter,
		const string &	id,
		const string &	uri
	)

References _audio, _callbacks, _playbin, _video, cb_Bus(), cb_NewSample(), ERROR, g_assert(), g_assert_nonnull(), g_free(), Player::resetProperties(), and unlikely.

PlayerVideo::~PlayerVideo ( )

Member Function Documentation

gboolean PlayerVideo::cb_Bus	(	GstBus *	bus,
		GstMessage *	msg,
		PlayerVideo *	player
	)

staticprivate

References ERROR, g_assert_nonnull(), getFreeze(), Player::setEOS(), TRACE, and WARNING.

Referenced by PlayerVideo().

GstFlowReturn PlayerVideo::cb_NewSample	(	GstAppSink *	,
		gpointer
	)

staticprivate

References _sample_flag, g_assert_nonnull(), and GINGA_NAMESPACE_END.

Referenced by PlayerVideo().

Player * Player::createPlayer	(	Formatter *	formatter,
		const string &	id,
		const string &	uri,
		const string &	mime
	)

staticinherited

References g_assert_nonnull(), unlikely, WARNING, and xstrhasprefix().

Referenced by Media::startTransition().

bool PlayerVideo::doSetProperty	(	PlayerProperty	,
		const string &	,
		const string &
	)

overrideprotectedvirtual

Reimplemented from Player.

References _audio, _prop, Player::_state, Player::doSetProperty(), parse_bool(), Player::PROP_BALANCE, Player::PROP_BASS, Player::PROP_FREEZE, Player::PROP_MUTE, Player::PROP_TREBLE, Player::PROP_VOLUME, Player::SLEEPING, and xstrtodorpercent().

string Player::getCurrentFocus ( )

staticinherited

Time Player::getDuration ( )

inherited

Referenced by Media::sendTickEvent().

bool Player::getEOS ( )

inherited

Referenced by redraw(), and Media::sendTickEvent().

bool PlayerVideo::getFreeze ( )

private

References _prop.

Referenced by cb_Bus().

Player::PlayerProperty Player::getPlayerProperty	(	const string &	name,
		string *	defval
	)

staticinherited

References g_assert(), player_property_aliases, player_property_map, and tryset.

Referenced by Player::setProperty().

string Player::getProperty ( const string & name )

virtualinherited

Referenced by Media::sendKeyEvent().

Player::PlayerState Player::getState ( )

inherited

Referenced by Media::doStop().

Time Player::getTime ( )

inherited

void Player::getZ	(	int *	z,
		int *	zorder
	)

inherited

References tryset.

Referenced by Media::getZ().

void Player::incTime ( Time inc )

inherited

Referenced by Media::sendTickEvent().

bool Player::isFocused ( )

inherited

Referenced by Media::isFocused(), and Media::sendKeyEvent().

void PlayerVideo::pause ( )

overridevirtual

Reimplemented from Player.

References _playbin, Player::_state, g_assert(), gstx_element_set_state_sync, Player::pause(), Player::PAUSED, Player::SLEEPING, and TRACE.

void PlayerVideo::redraw ( cairo_t * cr )

overridevirtual

Reimplemented from Player.

References Player::_gltexture, Player::_opengl, _sample_flag, Player::_state, Player::_surface, _video, caps, GL::create_texture(), GL::delete_texture(), g_assert(), g_assert_nonnull(), Player::getEOS(), Player::redraw(), and Player::SLEEPING.

void Player::reload ( )

virtualinherited

Reimplemented in PlayerText, PlayerImage, and PlayerSvg.

References TRACE.

Referenced by PlayerImage::reload(), PlayerSvg::reload(), and PlayerText::reload().

void Player::resetProperties ( )

inherited

References player_property_map.

Referenced by PlayerText::PlayerText(), and PlayerVideo().

void Player::resetProperties ( set< string > * props )

inherited

void PlayerVideo::resume ( )

overridevirtual

Reimplemented from Player.

References _playbin, Player::_state, g_assert(), gstx_element_set_state_sync, Player::PAUSED, Player::resume(), and TRACE.

void Player::schedulePropertyAnimation	(	const string &	name,
		const string &	from,
		const string &	to,
		Time	dur
	)

inherited

Referenced by Media::setProperty().

void Player::sendKeyEvent	(	const string &	,
		bool
	)

virtualinherited

Reimplemented in PlayerLua.

References Player::_currentFocus.

Referenced by Media::sendKeyEvent().

void Player::setCurrentFocus ( const string & index )

staticinherited

References TRACE.

Referenced by MediaSettings::setProperty().

void Player::setDuration ( Time duration )

inherited

void Player::setEOS ( bool eos )

inherited

Referenced by cb_Bus(), and start().

void Player::setProperty	(	const string &	name,
		const string &	value
	)

virtualinherited

References PlayerPropertyInfo::code, PlayerPropertyInfo::defval, ERROR, Player::getPlayerProperty(), Player::PROP_UNKNOWN, and unlikely.

Referenced by Media::setProperty(), and Media::startTransition().

void Player::setZ	(	int	z,
		int	zorder
	)

inherited

void PlayerVideo::start ( )

overridevirtual

Reimplemented from Player.

References _audio, _playbin, _prop, _sample_flag, Player::_state, _video, caps, g_assert(), g_assert_nonnull(), Player::OCCURRING, Player::setEOS(), Player::start(), TRACE, and unlikely.

void PlayerVideo::stop ( )

overridevirtual

Reimplemented from Player.

References _playbin, Player::_state, g_assert(), gstx_element_set_state_sync, Player::SLEEPING, Player::stop(), and TRACE.

Member Data Documentation

PlayerAnimator* Player::_animator

protectedinherited

struct { ... } PlayerVideo::_audio

Referenced by doSetProperty(), PlayerVideo(), and start().

GstAppSinkCallbacks PlayerVideo::_callbacks

private

Referenced by PlayerVideo().

bool Player::_dirty

protectedinherited

Referenced by PlayerText::doSetProperty().

bool Player::_eos

protectedinherited

Formatter* Player::_formatter

protectedinherited

guint Player::_gltexture

protectedinherited

Referenced by redraw(), PlayerLua::redraw(), PlayerImage::reload(), PlayerText::reload(), and PlayerLua::stop().

string Player::_id

protectedinherited

bool Player::_opengl

protectedinherited

Referenced by redraw(), PlayerLua::redraw(), PlayerImage::reload(), PlayerText::reload(), and PlayerLua::stop().

GstElement* PlayerVideo::_playbin

private

Referenced by pause(), PlayerVideo(), resume(), start(), and stop().

struct { ... } PlayerVideo::_prop

Referenced by doSetProperty(), getFreeze(), and start().

map<string, string> Player::_properties

protectedinherited

int PlayerVideo::_sample_flag

private

Referenced by cb_NewSample(), redraw(), and start().

PlayerState Player::_state

protectedinherited

Referenced by doSetProperty(), PlayerLua::doSetProperty(), pause(), PlayerLua::pause(), redraw(), PlayerLua::redraw(), PlayerSvg::reload(), resume(), PlayerLua::resume(), start(), PlayerLua::start(), stop(), and PlayerLua::stop().

cairo_surface_t* Player::_surface

protectedinherited

Referenced by redraw(), PlayerLua::redraw(), PlayerImage::reload(), PlayerSvg::reload(), and PlayerText::reload().

Time Player::_time

protectedinherited

string Player::_uri

protectedinherited

Referenced by PlayerImage::reload(), PlayerSvg::reload(), PlayerText::reload(), and PlayerLua::start().

struct { ... } PlayerVideo::_video

Referenced by PlayerVideo(), redraw(), and start().

guint8 Player::alpha

inherited

double PlayerVideo::balance

double PlayerVideo::bass

Color Player::bgColor

inherited

GstElement* PlayerVideo::bin

GstElement* PlayerVideo::caps

Referenced by redraw(), and start().

GstElement* PlayerVideo::convert

bool Player::debug

inherited

Time Player::duration

inherited

GstElement* PlayerVideo::equalizer

string Player::focusIndex

inherited

bool PlayerVideo::freeze

bool PlayerVideo::mute

GstElement* PlayerVideo::pan

Rect Player::rect

inherited

GstElement* PlayerVideo::sink

double PlayerVideo::treble

bool Player::visible

inherited

GstElement* PlayerVideo::volume

double PlayerVideo::volume

int Player::z

inherited

int Player::zorder

inherited

The documentation for this class was generated from the following files:
