Object Class Reference

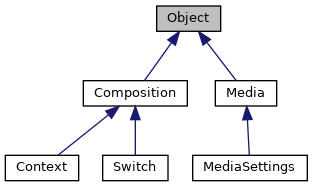

Inheritance diagram for Object:

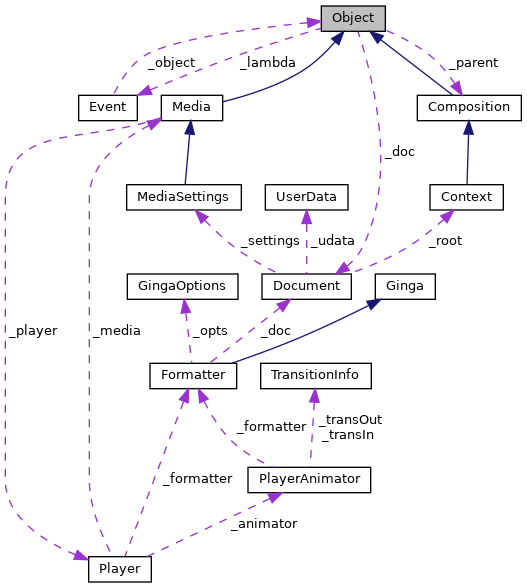

Collaboration diagram for Object:

Public Member Functions
	Object (const string &)
string	getId ()
Document *	getDocument ()
void	initDocument (Document *)
Composition *	getParent ()
void	initParent (Composition *)
virtual string	getObjectTypeAsString ()=0
virtual string	toString ()
const list< string > *	getAliases ()
bool	hasAlias (const string &)
void	addAlias (const string &)
const set< Event * > *	getEvents ()
Event *	getEvent (Event::Type, const string &)
Event *	getAttributionEvent (const string &)
void	addAttributionEvent (const string &)
Event *	getPresentationEvent (const string &)
Event *	getPresentationEventByLabel (const string &)
void	addPresentationEvent (const string &, Time, Time)
void	addPresentationEvent (const string &, const string &)
Event *	getSelectionEvent (const string &)
void	addSelectionEvent (const string &)
Event *	getLambda ()
bool	isOccurring ()
bool	isPaused ()
bool	isSleeping ()
virtual string	getProperty (const string &)
virtual void	setProperty (const string &, const string &, Time dur=0)
const list< pair< Action, Time > > *	getDelayedActions ()
void	addDelayedAction (Event *, Event::Transition, const string &value="", Time delay=0)
virtual void	sendKey (const string &, bool)
virtual void	sendTick (Time, Time, Time)
virtual bool	beforeTransition (Event *, Event::Transition)=0
	Initiates event transition. More...
virtual bool	afterTransition (Event *, Event::Transition)=0
	Finishes event transition. More...

Protected Member Functions
virtual void	doStart ()
virtual void	doStop ()

Protected Attributes
string	_id
Document *	_doc
Composition *	_parent
list< string >	_aliases
Time	_time
map< string, string >	_properties
Event *	_lambda
set< Event * >	_events
list< pair< Action, Time > >	_delayed

Member Function Documentation

afterTransition()

virtual bool Object::afterTransition ( Event *  , Event::Transition    )

pure virtual

Finishes event transition.

This function is called by Event::transition() immediately after transitioning evt. If the transition can finish successfully, the function returns true. Otherwise, if the transition must be reverted, e.g., due to some error, the function returns false.

Parameters

evt	Event that was transitioned.
transition	The transition.

Returns

true if successful, or false otherwise (cancel transition).

Implemented in Context, Media, and Switch.

beforeTransition()

virtual bool Object::beforeTransition ( Event *  , Event::Transition    )

pure virtual

Initiates event transition.

This function is called by Event::transition() immediately before transitioning evt. If the transition can go on, the function returns true. Otherwise, if the transition must be cancelled, e.g., due to some error, the function returns false.

Parameters

evt	Event to be transitioned.
transition	The desired transition.

Returns

true if successful, or false otherwise (cancel transition).

Implemented in Context, Media, and Switch.

---

The documentation for this class was generated from the following files:

• lib/Object.h
• lib/Object.cpp
