Context Class Reference

Inheritance diagram for Context:

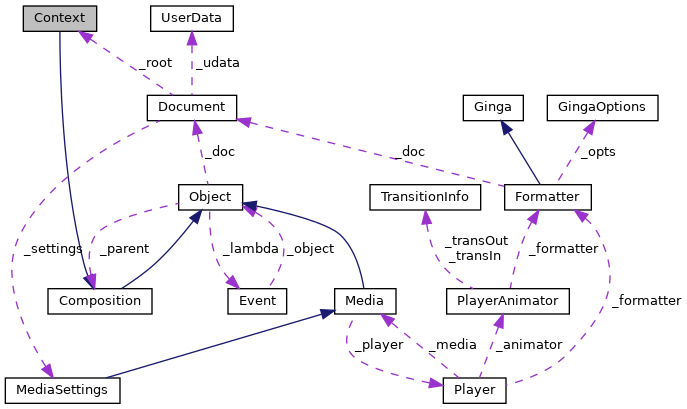

Collaboration diagram for Context:

Public Member Functions
	Context (const string &)
string	getObjectTypeAsString () override
string	toString () override
string	getProperty (const string &) override
void	setProperty (const string &, const string &, Time dur=0) override
void	sendKey (const string &, bool) override
void	sendTick (Time, Time, Time) override
bool	beforeTransition (Event *, Event::Transition) override
	Initiates event transition. More...
bool	afterTransition (Event *, Event::Transition) override
	Finishes event transition. More...
const list< Event * > *	getPorts ()
void	addPort (Event *)
const list< pair< list< Action >, list< Action > > > *	getLinks ()
void	addLink (list< Action >, list< Action >)
void	incAwakeChildren ()
void	decAwakeChildren ()
bool	getLinksStatus ()
void	setLinksStatus (bool)
Public Member Functions inherited from Composition
	Composition (const string &)
const set< Object * > *	getChildren ()
Object *	getChildById (const string &)
Object *	getChildByIdOrAlias (const string &)
void	addChild (Object *)
Public Member Functions inherited from Object
	Object (const string &)
string	getId ()
Document *	getDocument ()
void	initDocument (Document *)
Composition *	getParent ()
void	initParent (Composition *)
const list< string > *	getAliases ()
bool	hasAlias (const string &)
void	addAlias (const string &)
const set< Event * > *	getEvents ()
Event *	getEvent (Event::Type, const string &)
Event *	getAttributionEvent (const string &)
void	addAttributionEvent (const string &)
Event *	getPresentationEvent (const string &)
Event *	getPresentationEventByLabel (const string &)
void	addPresentationEvent (const string &, Time, Time)
void	addPresentationEvent (const string &, const string &)
Event *	getSelectionEvent (const string &)
void	addSelectionEvent (const string &)
Event *	getLambda ()
bool	isOccurring ()
bool	isPaused ()
bool	isSleeping ()
const list< pair< Action, Time > > *	getDelayedActions ()
void	addDelayedAction (Event *, Event::Transition, const string &value="", Time delay=0)

Private Attributes
list< Event * >	_ports
	List of ports.
list< pair< list< Action >, list< Action > > >	_links
	List of links.
int	_awakeChildren
	Counts awake children.
bool	_status
	Whether links are active.

Additional Inherited Members
Protected Member Functions inherited from Object
virtual void	doStart ()
virtual void	doStop ()
Protected Attributes inherited from Composition
set< Object * >	_children
Protected Attributes inherited from Object
string	_id
Document *	_doc
Composition *	_parent
list< string >	_aliases
Time	_time
map< string, string >	_properties
Event *	_lambda
set< Event * >	_events
list< pair< Action, Time > >	_delayed

Member Function Documentation

afterTransition()

bool Context::afterTransition ( Event *  , Event::Transition    )

overridevirtual

Finishes event transition.

This function is called by Event::transition() immediately after transitioning evt. If the transition can finish successfully, the function returns true. Otherwise, if the transition must be reverted, e.g., due to some error, the function returns false.

Parameters

evt	Event that was transitioned.
transition	The transition.

Returns

true if successful, or false otherwise (cancel transition).

Implements Object.

beforeTransition()

bool Context::beforeTransition ( Event *  , Event::Transition    )

overridevirtual

Initiates event transition.

This function is called by Event::transition() immediately before transitioning evt. If the transition can go on, the function returns true. Otherwise, if the transition must be cancelled, e.g., due to some error, the function returns false.

Parameters

evt	Event to be transitioned.
transition	The desired transition.

Returns

true if successful, or false otherwise (cancel transition).

Implements Object.

---

The documentation for this class was generated from the following files:

• lib/Context.h
• lib/Context.cpp
