A player class for HTML. More...

#include <PlayerHTML.h>

Inheritance diagram for PlayerHTML:

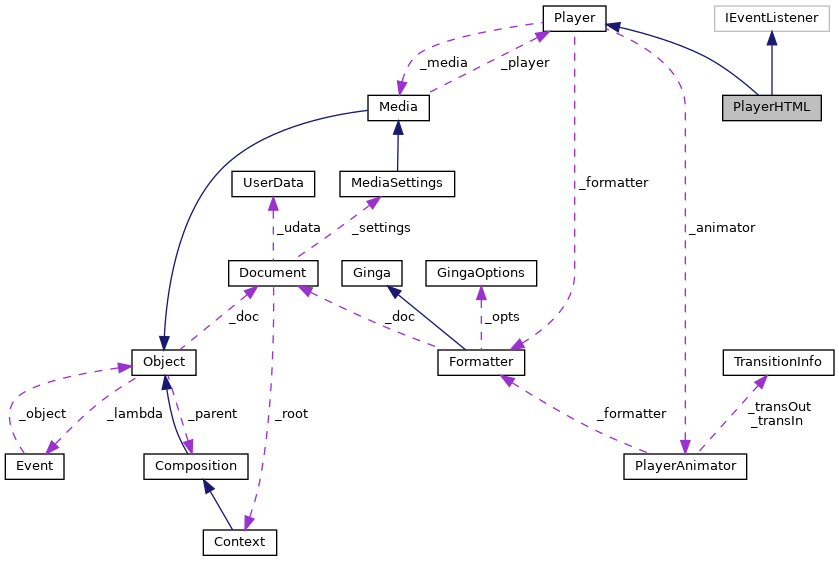

Collaboration diagram for PlayerHTML:

[legend]

Public Member Functions
	PlayerHTML (const string &location)
	Default constructor for PlayerHTML. More...

virtual	~PlayerHTML ()
	Default destructor for PlayerHTML. More...

virtual bool	play () override
	Start the presentation. More...

virtual void	stop () override
	Stop the presentation. More...

virtual void	handleKeyEvent (SDL_EventType type, SDL_Keycode key) override
	Process keyboard input events. More...

virtual void	handleTickEvent (Time, Time, int) override

Public Member Functions inherited from Player
	Player (Formatter , Media )

State	getState ()

void	getZ (int , int )

bool	isFocused ()

Time	getTime ()

void	incTime (Time)

Time	getDuration ()

void	setDuration (Time)

bool	getEOS ()

void	setEOS (bool)

virtual void	start ()

virtual void	pause ()

virtual void	resume ()

virtual string	getProperty (const string &)

virtual void	setProperty (const string &, const string &)

void	resetProperties ()

void	resetProperties (set< string > *)

void	schedulePropertyAnimation (const string &, const string &, const string &, Time)

virtual void	reload ()

virtual void	redraw (cairo_t *)

virtual void	sendKeyEvent (const string &, bool)

virtual void	sendPresentationEvent (const string &, const string &)

Private Member Functions
bool	displayJobCallback (DisplayJob job, SDL_Renderer renderer)
	Defines the job actions to be executed by the renderer. More...

void	mouseInputCallback (SDL_EventType type, int x, int y)
	Process mouse input events. More...

int	getPlayerKey (SDL_Keycode key)
	Translate a SDL key code to a CEF key code. More...

Static Private Member Functions
static bool	displayJobCallbackWrapper (DisplayJob job, SDL_Renderer renderer, void *self)
	Defines mutex methods. More...

Private Attributes
CefRefPtr< GingaCefHandler >	_handler
	Keep the active handler instance, needed to create a new client instance.

CefRefPtr< GingaCefClient >	_client
	Keep the active client instance, needed to create a new browser instance.

CefRefPtr< CefBrowser >	_browser
	Keep the active browser instance.

bool	_isPlaying
	Keep execution player status.

Additional Inherited Members
Public Types inherited from Player
enum	State { SLEEPING = 1, OCCURRING, PAUSED }

enum	Property { PROP_UNKNOWN = 0, PROP_BACKGROUND, PROP_BALANCE, PROP_BASS, PROP_BOTTOM, PROP_BOUNDS, PROP_DEBUG, PROP_DURATION, PROP_EXPLICIT_DUR, PROP_FOCUS_INDEX, PROP_FONT_BG_COLOR, PROP_FONT_COLOR, PROP_FONT_FAMILY, PROP_FONT_SIZE, PROP_FONT_STYLE, PROP_FONT_VARIANT, PROP_FONT_WEIGHT, PROP_FREEZE, PROP_FREQ, PROP_HEIGHT, PROP_HORZ_ALIGN, PROP_LEFT, PROP_LOCATION, PROP_MUTE, PROP_RIGHT, PROP_SIZE, PROP_SPEED, PROP_TIME, PROP_TOP, PROP_TRANSPARENCY, PROP_TREBLE, PROP_TYPE, PROP_URI, PROP_VERT_ALIGN, PROP_VISIBLE, PROP_VOLUME, PROP_WAVE, PROP_WIDTH, PROP_Z_INDEX, PROP_Z_ORDER }

Static Public Member Functions inherited from Player
static string	getCurrentFocus ()

static void	setCurrentFocus (const string &)

static Property	getPlayerProperty (const string &, string *)

static Player *	createPlayer (Formatter , Media , const string &, const string &type="")

Protected Member Functions inherited from Player
virtual bool	doSetProperty (Property, const string &, const string &)

Protected Attributes inherited from Player
Formatter *	_formatter

Media *	_media

string	_id

State	_state

Time	_time

bool	_eos

cairo_surface_t *	_surface

bool	_opengl

guint	_gltexture

bool	_dirty

PlayerAnimator *	_animator

list< int >	_crop

map< string, string >	_properties

struct {
Color bgColor

Rect rect

Time duration

bool debug

bool visible

guint8 alpha

int z

int zorder

string focusIndex

string type

string uri

}	_prop

Detailed Description

A player class for HTML.

This class is responsible to present HTML pages. The player use the Chromium Embedded Framework (CEF) together with SDL to render the result in the screen.

Constructor & Destructor Documentation

◆ PlayerHTML()

GINGA_NAMESPACE_BEGIN PlayerHTML::PlayerHTML ( const string & location )

explicit

Default constructor for PlayerHTML.

Parameters

location An URI for the HTML file.

Returns: Nothing.

◆ ~PlayerHTML()

PlayerHTML::~PlayerHTML ( )

virtual

Default destructor for PlayerHTML.

Returns: Nothing.

Member Function Documentation

◆ displayJobCallback()

bool PlayerHTML::displayJobCallback	(	DisplayJob *	job,
		SDL_Renderer *	renderer
	)

private

Defines the job actions to be executed by the renderer.

Parameters

job	The job data.
renderer	The renderer.

Returns: false if the job could be removed from the execution list and true otherwise.

See also: displayJobCallbackWrapper(), play() and stop().

This method create a new browser and load the page to be render in the screen. In case the browser already exist, just process the browser events and update the screen. Return false only when stop() is called.

◆ displayJobCallbackWrapper()

bool PlayerHTML::displayJobCallbackWrapper	(	DisplayJob *	job,
		SDL_Renderer *	renderer,
		void *	self
	)

staticprivate

Defines mutex methods.

This MACRO is defined in src/ginga.h. Defines the job actions to be executed by the renderer.

Parameters

job	The job data.
renderer	The renderer.
self	The object instance.

Returns: false if the job could be removed from the execution list and true otherwise.

See also: displayJobCallback() and play().

Actually, this is just a wrapper to displayJobCallback().

◆ getPlayerKey()

int PlayerHTML::getPlayerKey ( SDL_Keycode key )

private

Translate a SDL key code to a CEF key code.

Parameters

key	A SDL key code.

Returns: A CEF key code.

◆ handleKeyEvent()

void PlayerHTML::handleKeyEvent	(	SDL_EventType	type,
		SDL_Keycode	key
	)

overridevirtual

Process keyboard input events.

Parameters

type	A SDL event type (SDL_KEYDOWN or SDL_KEYUP).
key	A SDL key code.

Returns: Nothing.

See also: getPlayerKey().

This method translate the key code captured by SDL in the event to the CEF code style and forward the events to the active browser.

◆ mouseInputCallback()

void PlayerHTML::mouseInputCallback	(	SDL_EventType	type,
		int	x,
		int	y
	)

private

Process mouse input events.

Parameters

type	A SDL event type (SDL_MOUSEBUTTONDOWN or SDL_MOUSEBUTTONUP)
x	The X coordinate, relative to window.
y	The Y coordinate, relative to window.

Returns: Nothing.

This method forward the events captured by SDL to the active browser.

◆ play()

bool PlayerHTML::play ( )

overridevirtual

Start the presentation.

Returns: Nothing.

See also: displayJobCallbackWrapper() and displayJobCallback().

This method adds a new display job to start the presentation.

◆ stop()

void PlayerHTML::stop ( )

overridevirtual

Stop the presentation.

Returns: Nothing.

See also: displayJobCallbackWrapper() and displayJobCallback().

This method stop the presentation by finishing the display job and cleaning the screen.

Reimplemented from Player.

The documentation for this class was generated from the following files:

lib/PlayerHTML.h
lib/PlayerHTML.cpp
